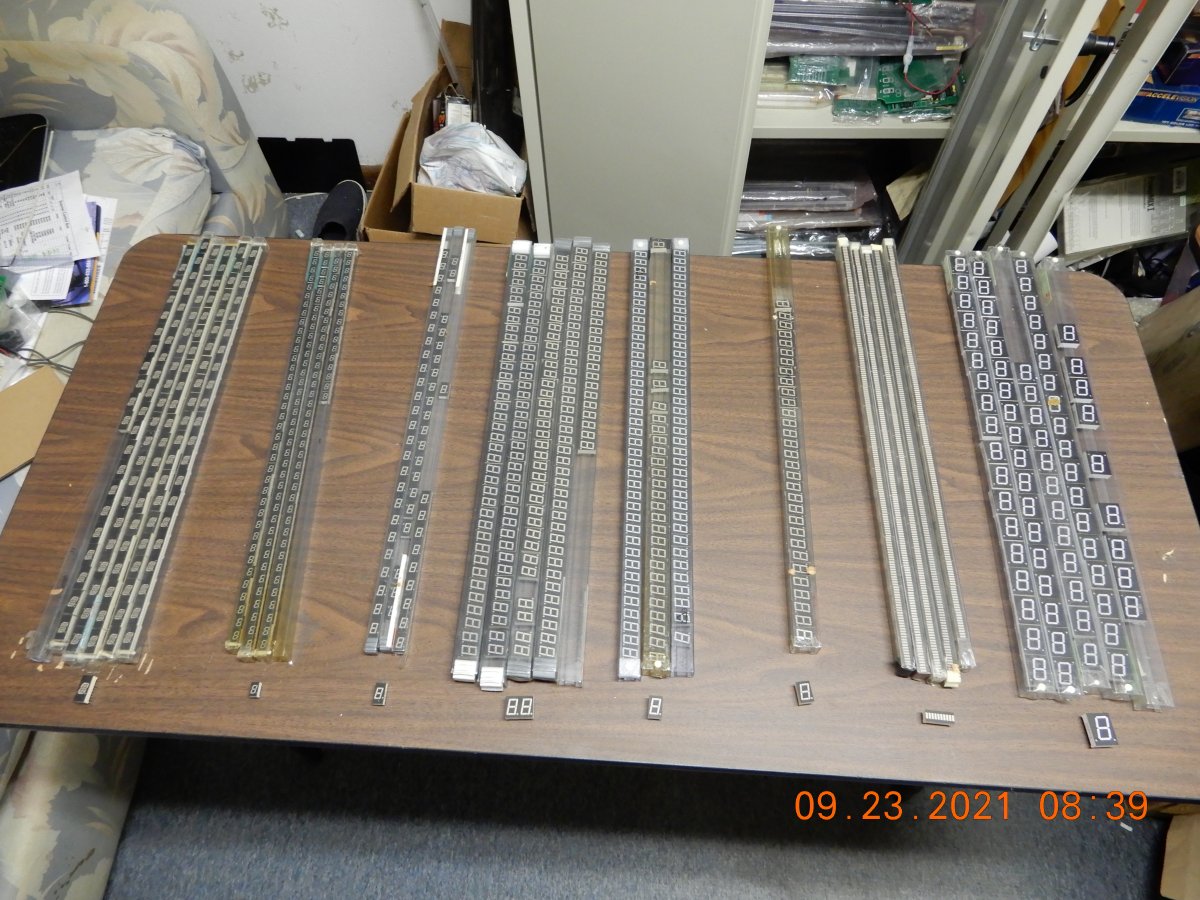

Over the years, Marks Custom Kits was building, and supplying, digital instrument gauges and displays for both our own product lines, and customers projects. And because we had a very specific product look, I was purchasing specialized displays that fit the look of what we were doing. The digital numerics, alphanumerics and bargraphs, all have black faces with  super bright segments. I was purchasing quantity of these displays because of the volume of work we were doing. Now, since the hobby that I was catering to has grossly slowed down, I have an excess of these special ordered LED displays that I am making available to any hobbyist that may want to use them in their own custom build. I am attaching the tech sheets which shows pin outs so you can make sure it will work with your application. It is to note that because I was special ordering these, the markings on the side of the display may not exactly match the tech sheets, because most will have coding that is reflecting the black face with white segments. And they will be either Common Anode or Common Cathode, depending on your electronic designs. Some of the companies that I purchased these from are no longer in business, or no longer manufacture these specific displays, since they scaled back production to only the high demand products. ALL of the listed items are brand new, NEVER installed or used. Due to application variations, there are no returns, so please make sure you know what displays your projects and application will need. Please refer to the photos and PDF tech sheets that go with each item, and do NOT worry that the part numbers on the tech sheets don’t exactly match the part numbers on the side of the displays. Remember, these were special ordered to have the black faces with white segments. Notations will be made as to what the displays are “normally” used for to help you. Shipping will be determined based upon your address........... Happy Shopping !!!



Used For: Numeric readouts

$ 1.50

75+

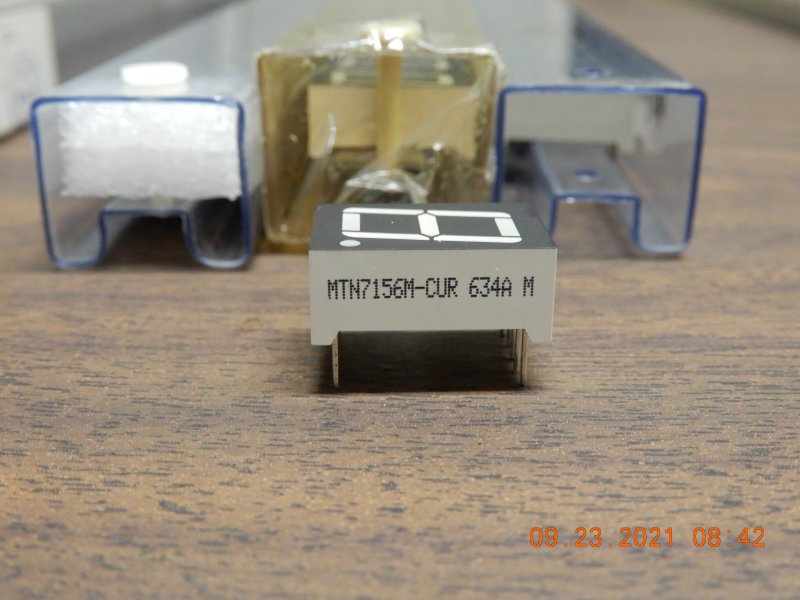

  MTN7156-CUR

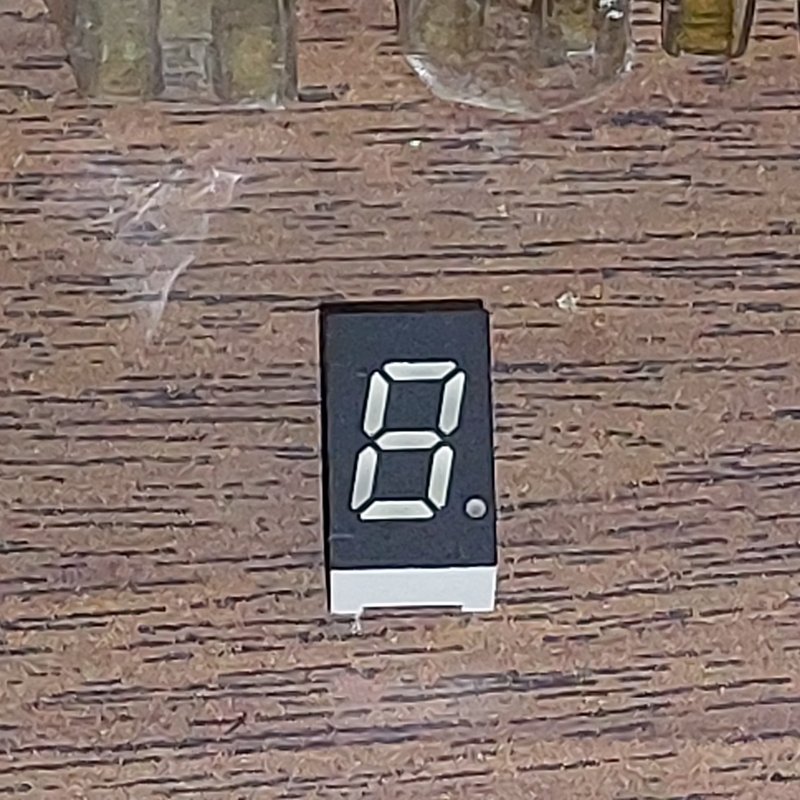

.3" Common Cathode

 Pin-Outs   Price Each

Available Qty

Used For: Telltales, Odometer Digits



$ 1.50

100+

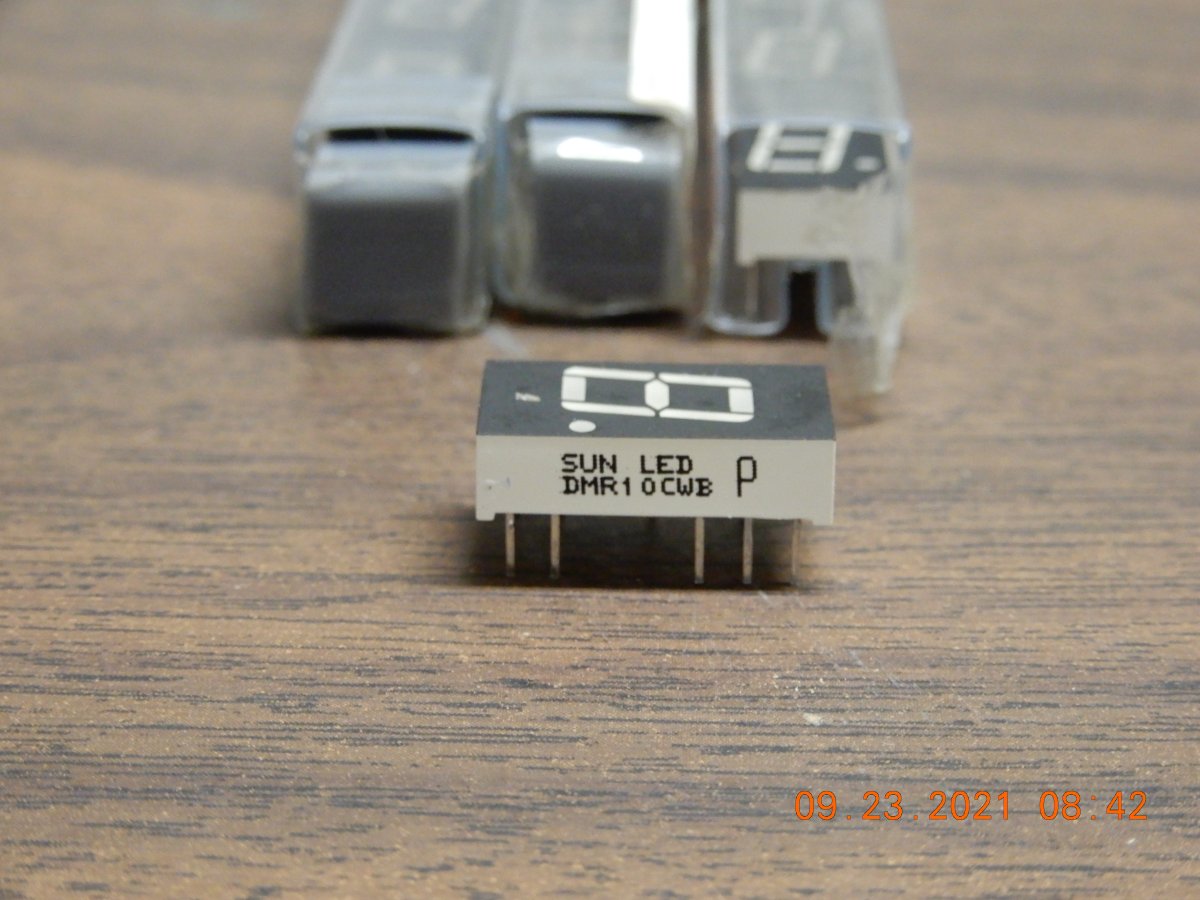

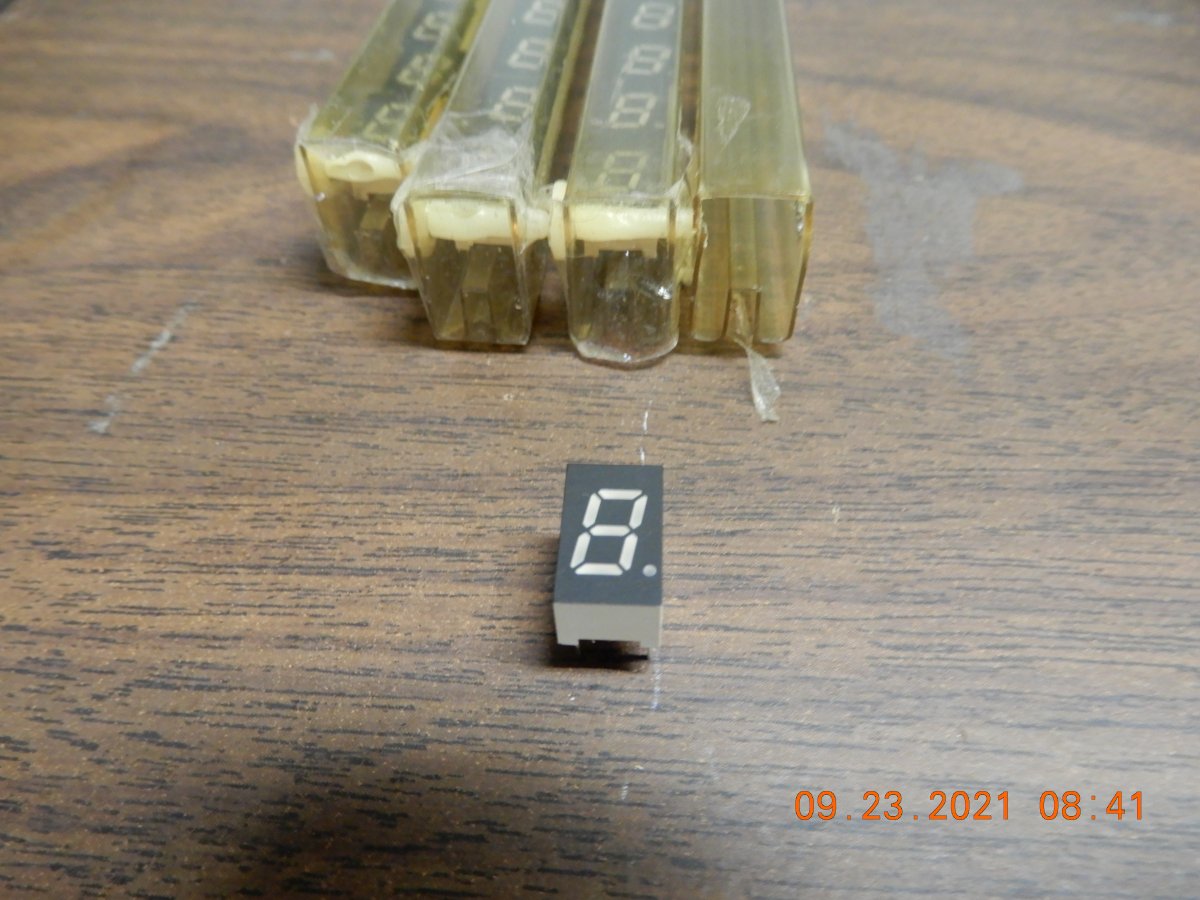

DMR10CWB 4" Common Cathode

Pin-Outs



Price Each

 Available Qty


Used For: Speedometer, Tachometer

 $ 1.50 50+

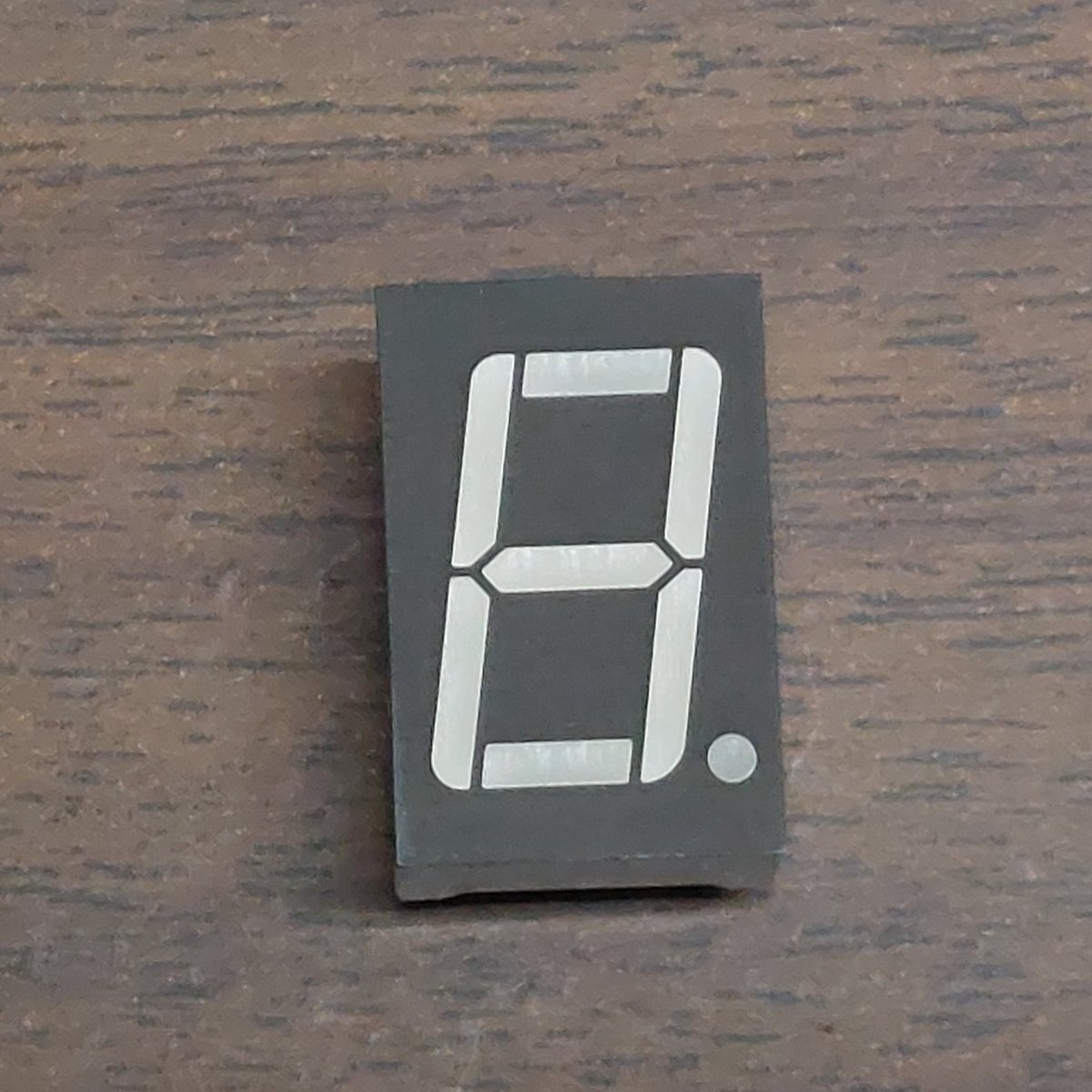

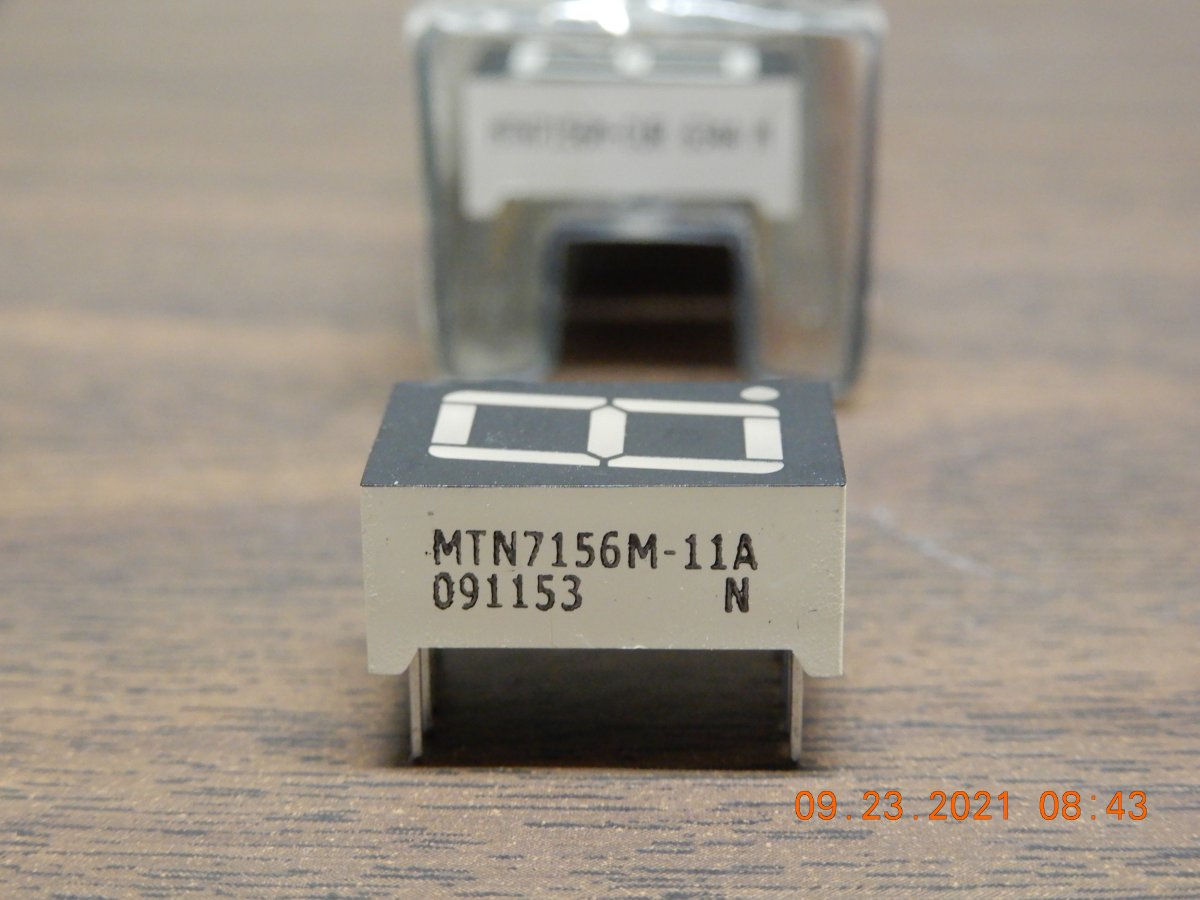

MTN7156-11A .56" Single Common Anode Pin Outs   Price Each Available Qty

Used For: Trip Odometer

 $ 2.00 100+

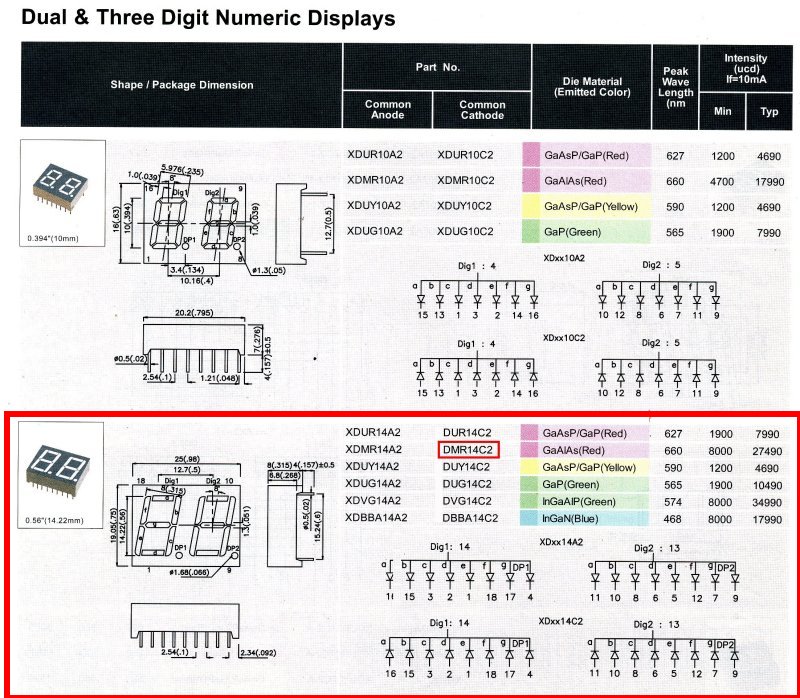

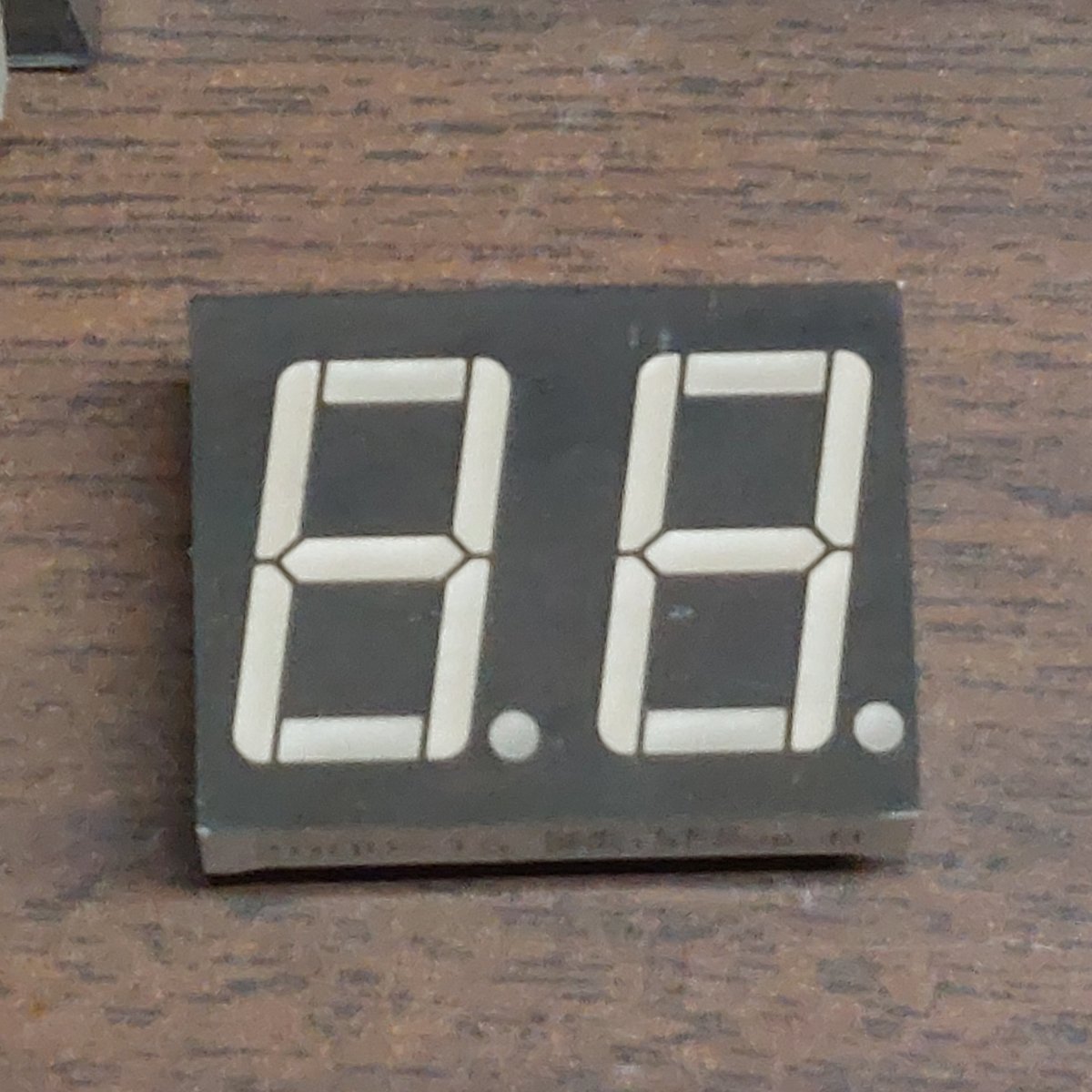

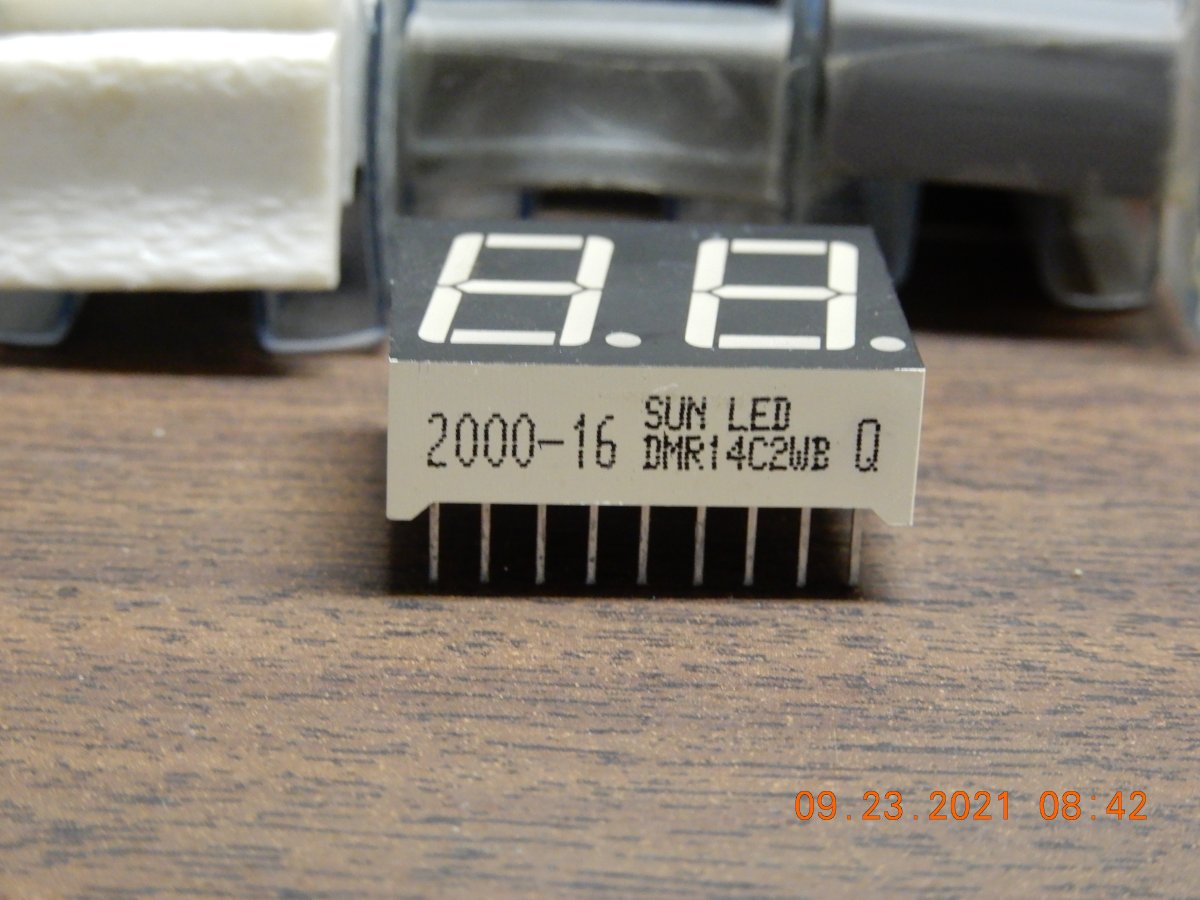

DMR14C2WB .56" dual Common Cathode Pin Outs   Price Each Available Qty


Used For: Speedometer, Tachometer

 $ 2.00 50+

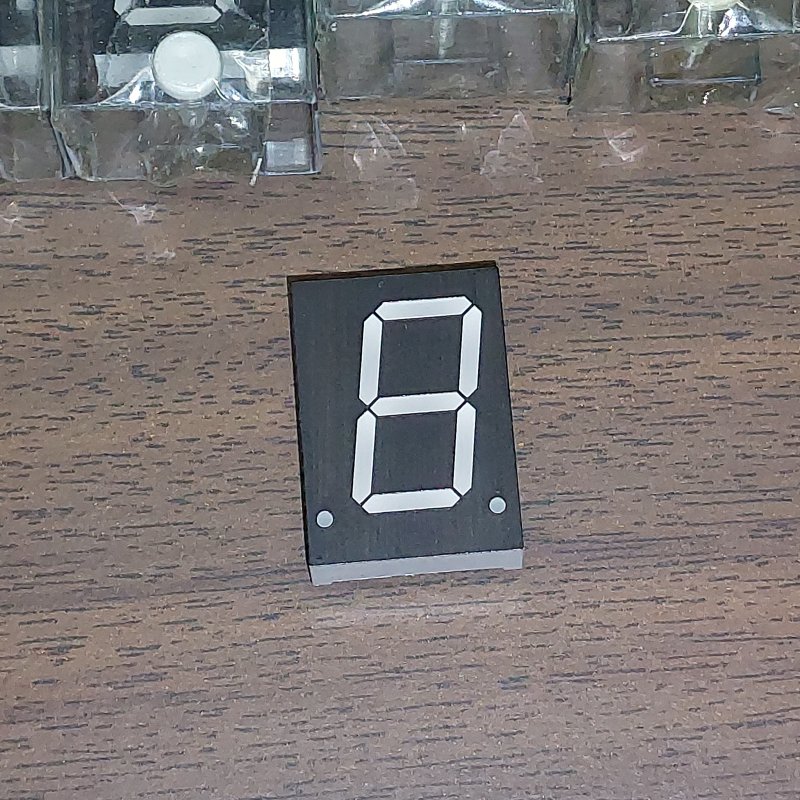

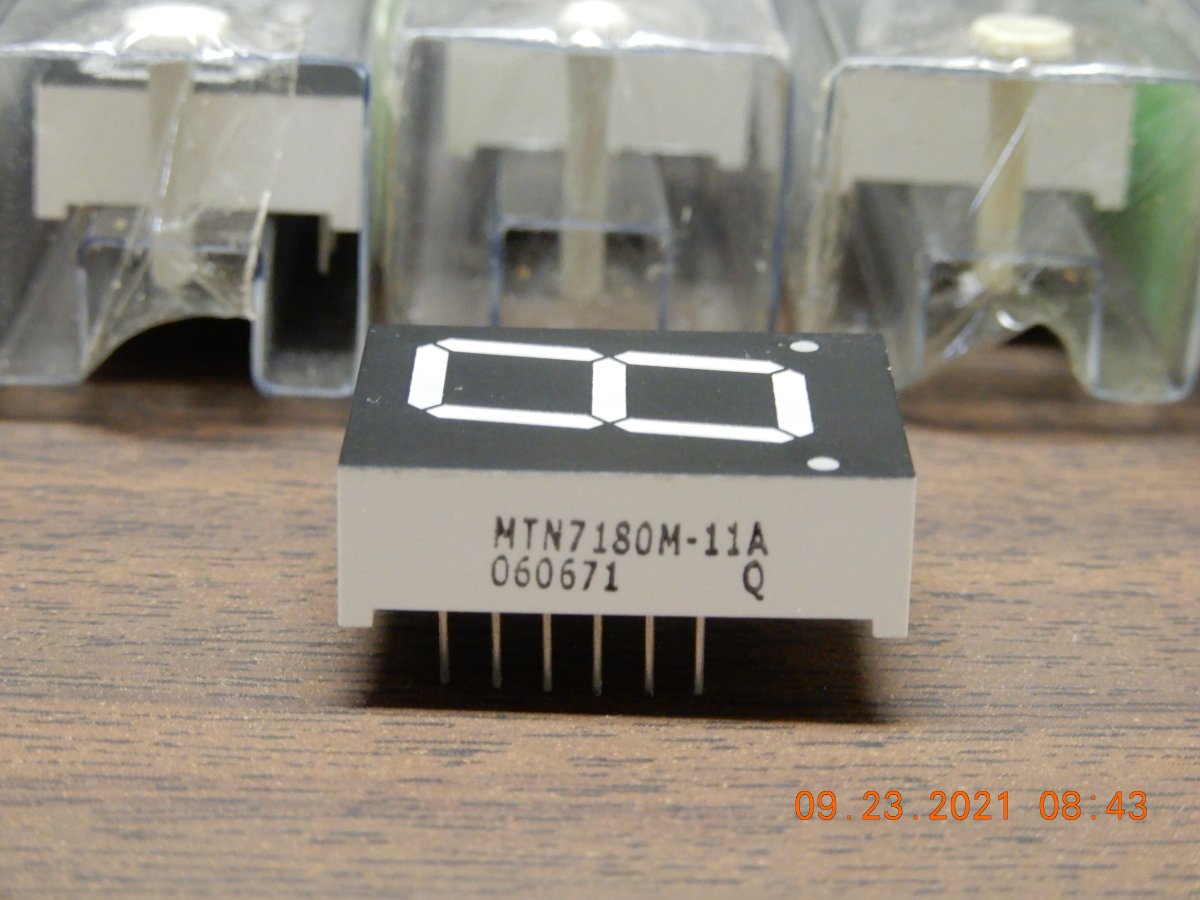

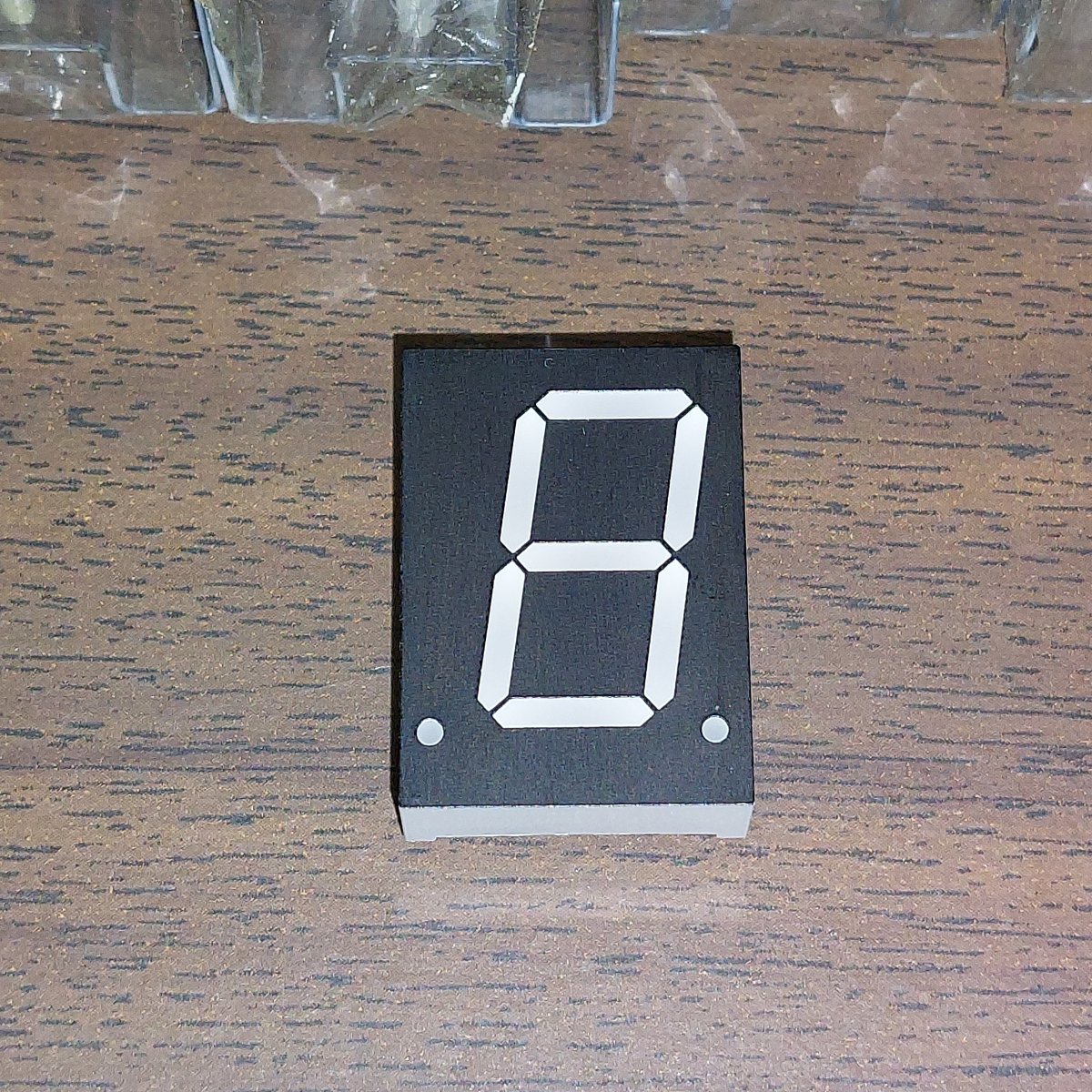

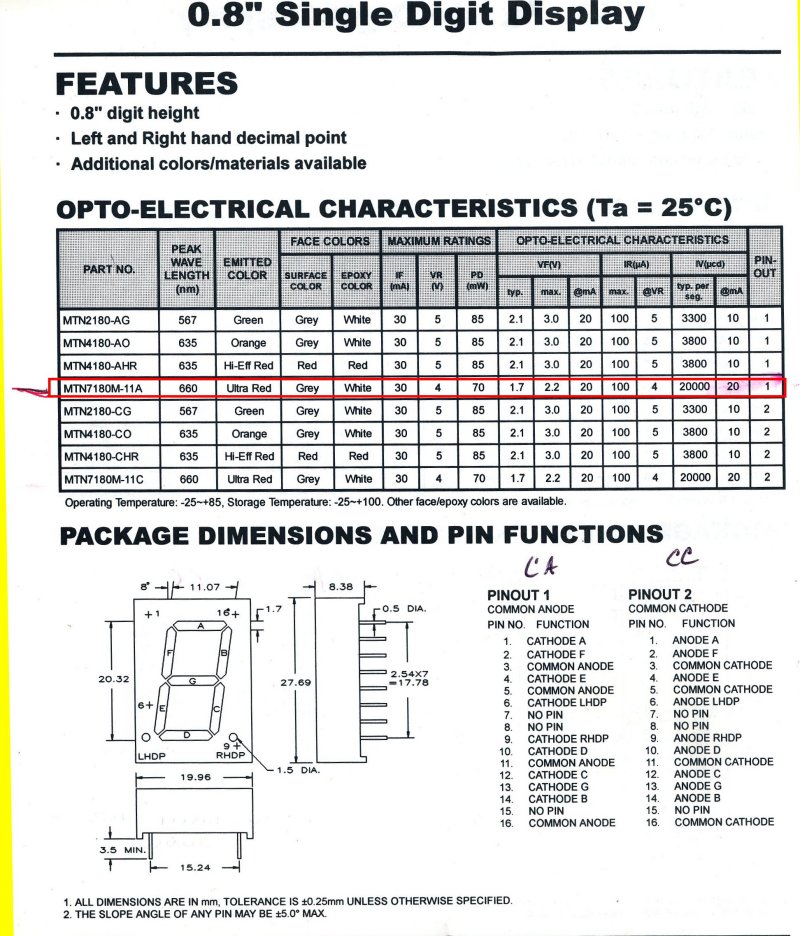

MTN7180-11A .8" Single Common Anode Pin Outs   Price Each Available Qty


Used For: Alphanumeric readouts

 $ 1.75 100+

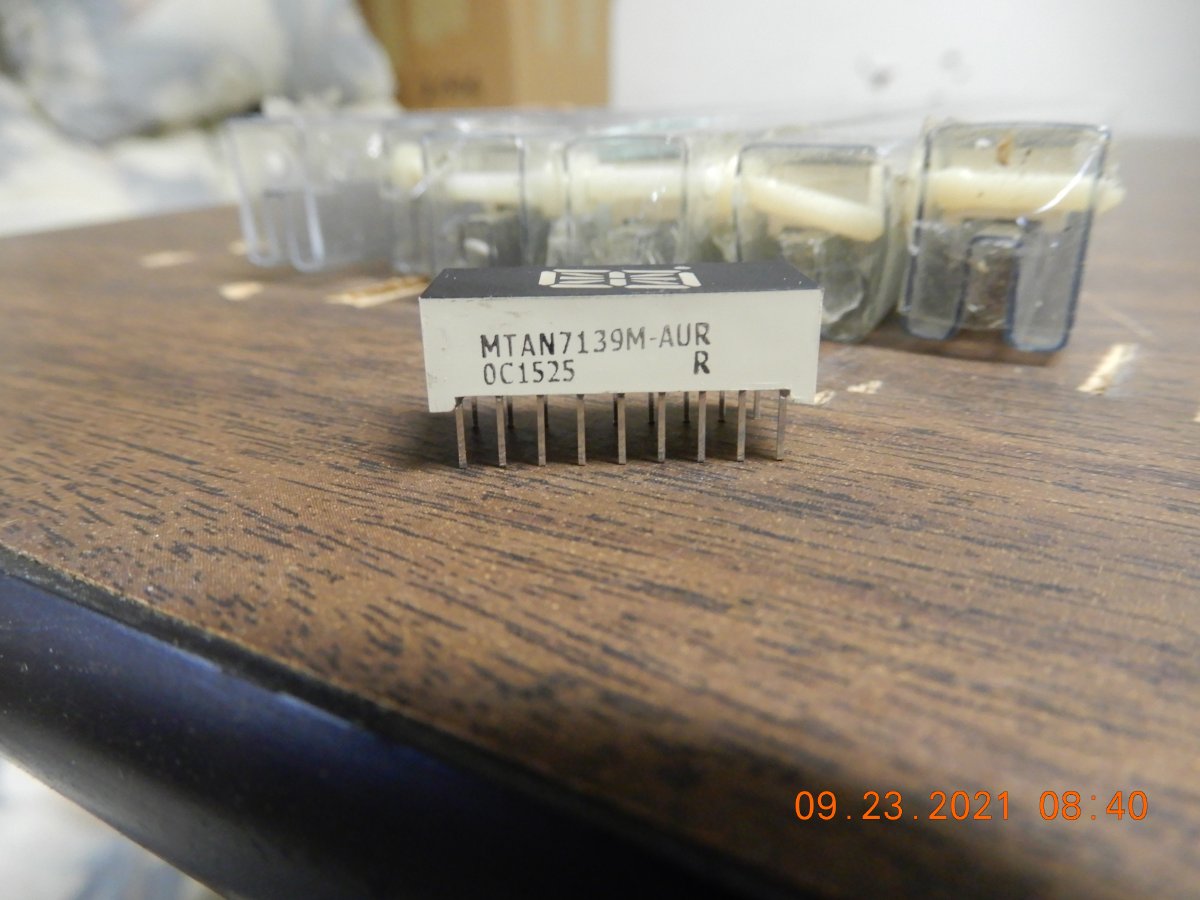

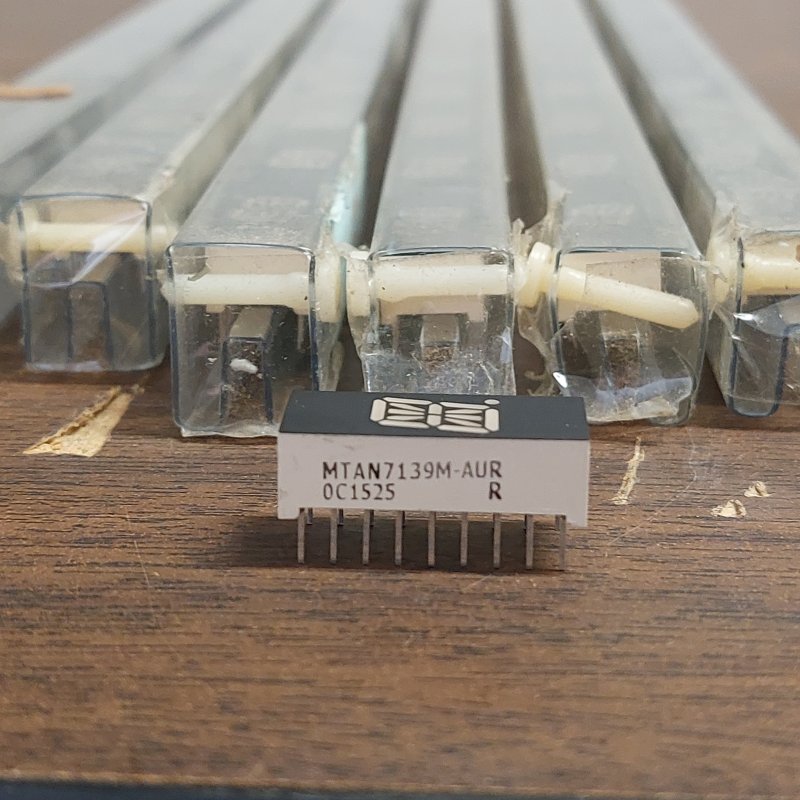

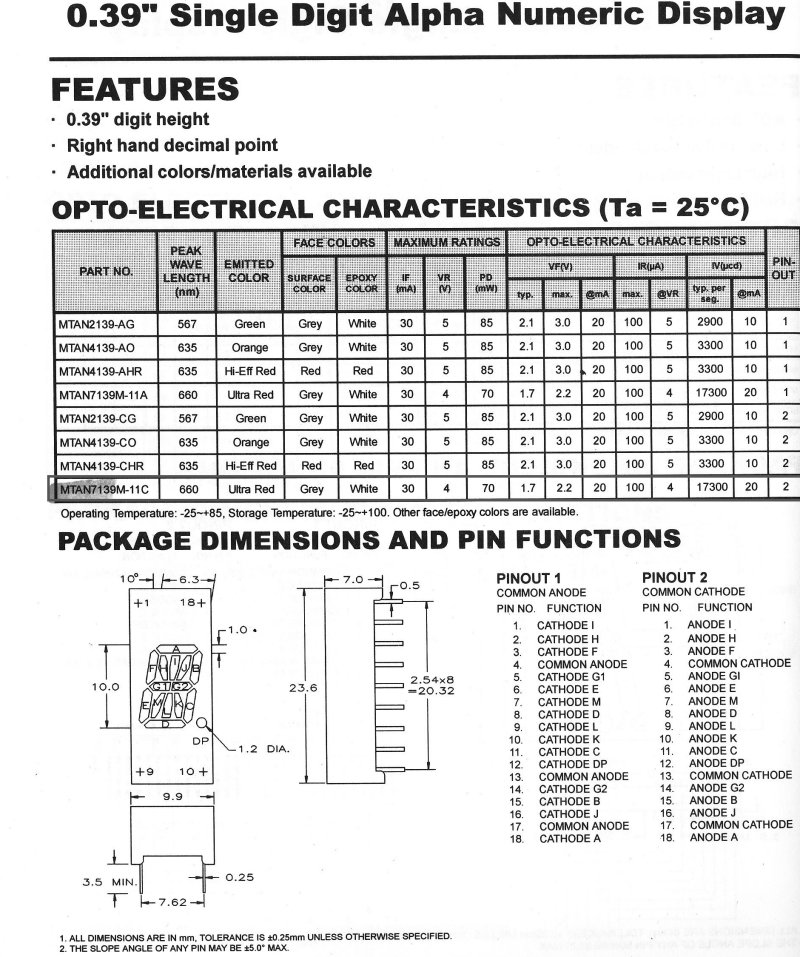

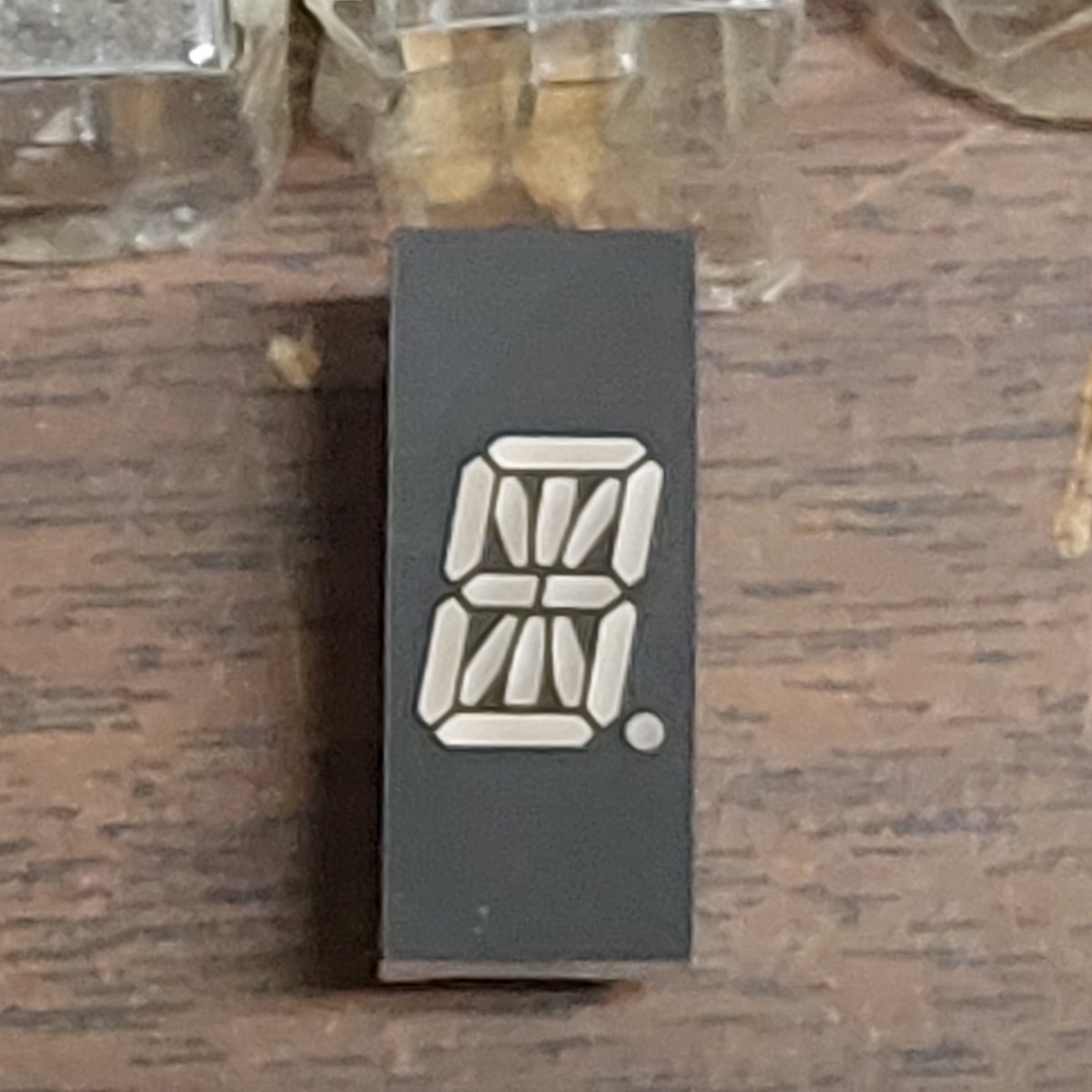

MTAN7139M-AUR .39" Alphanumeric Common Cathode Pin Outs   Price Each Available Qty


Used For: Signal-Tuning, Vox Display

 $ 1.75 100+

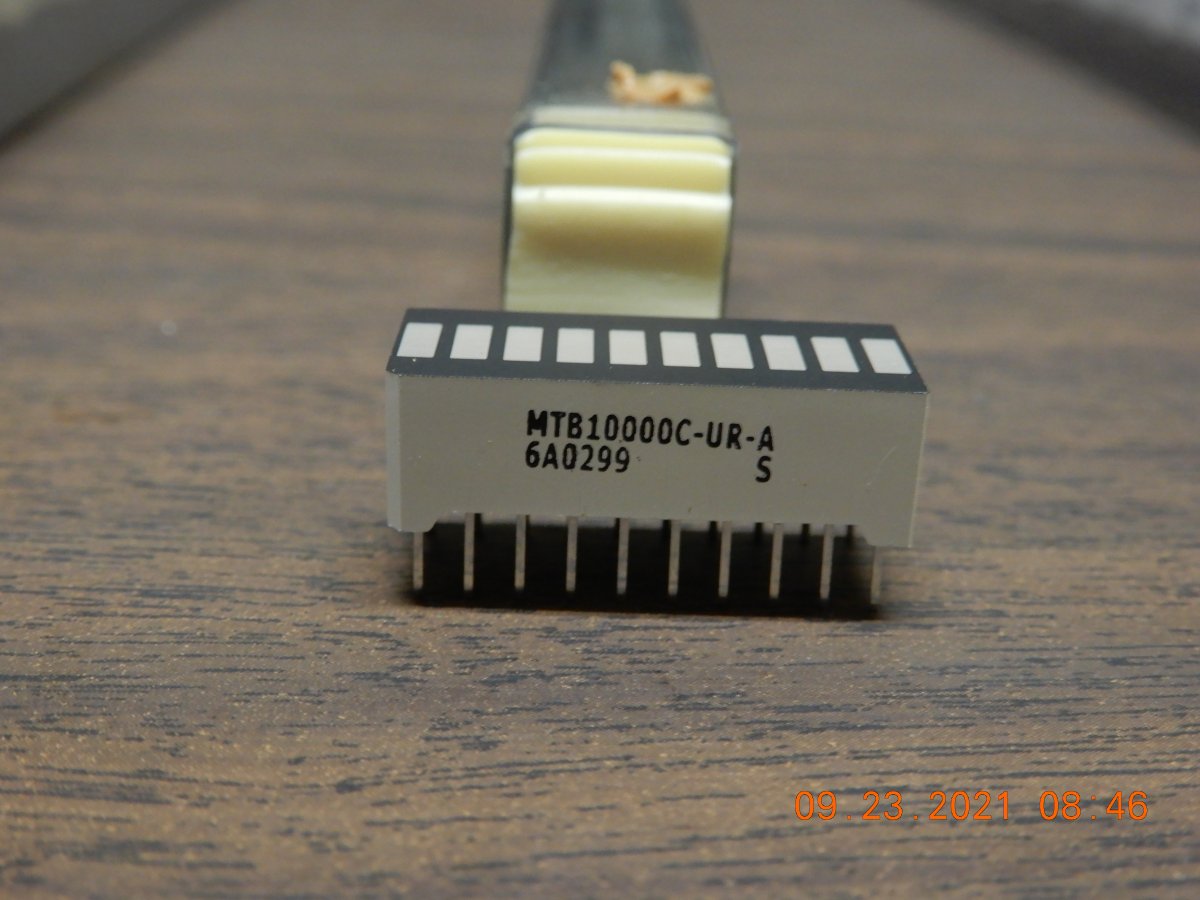

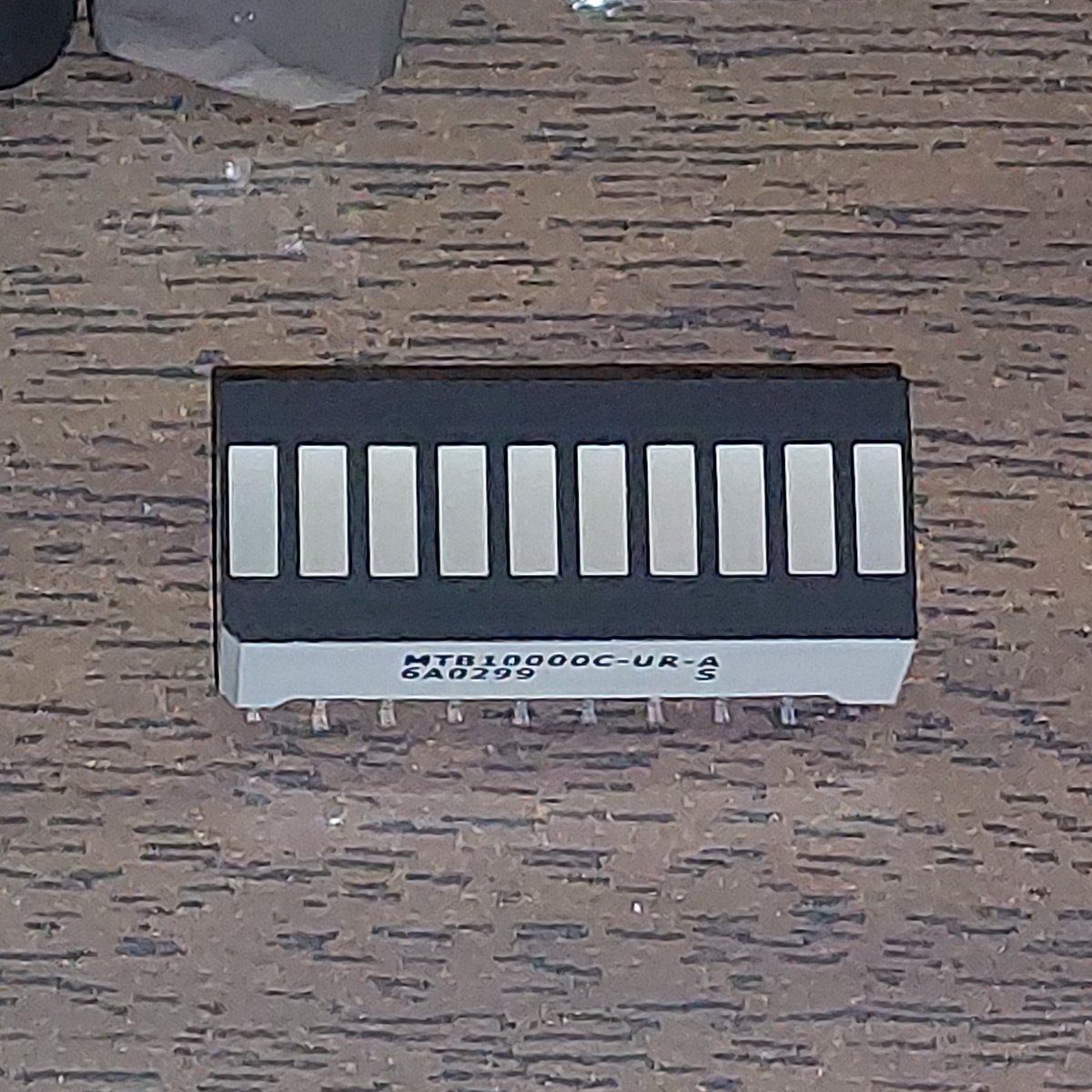

MTB10000C-UR-A 10 Segment Super Red Bargraph Pin Outs   Price Each Available Qty

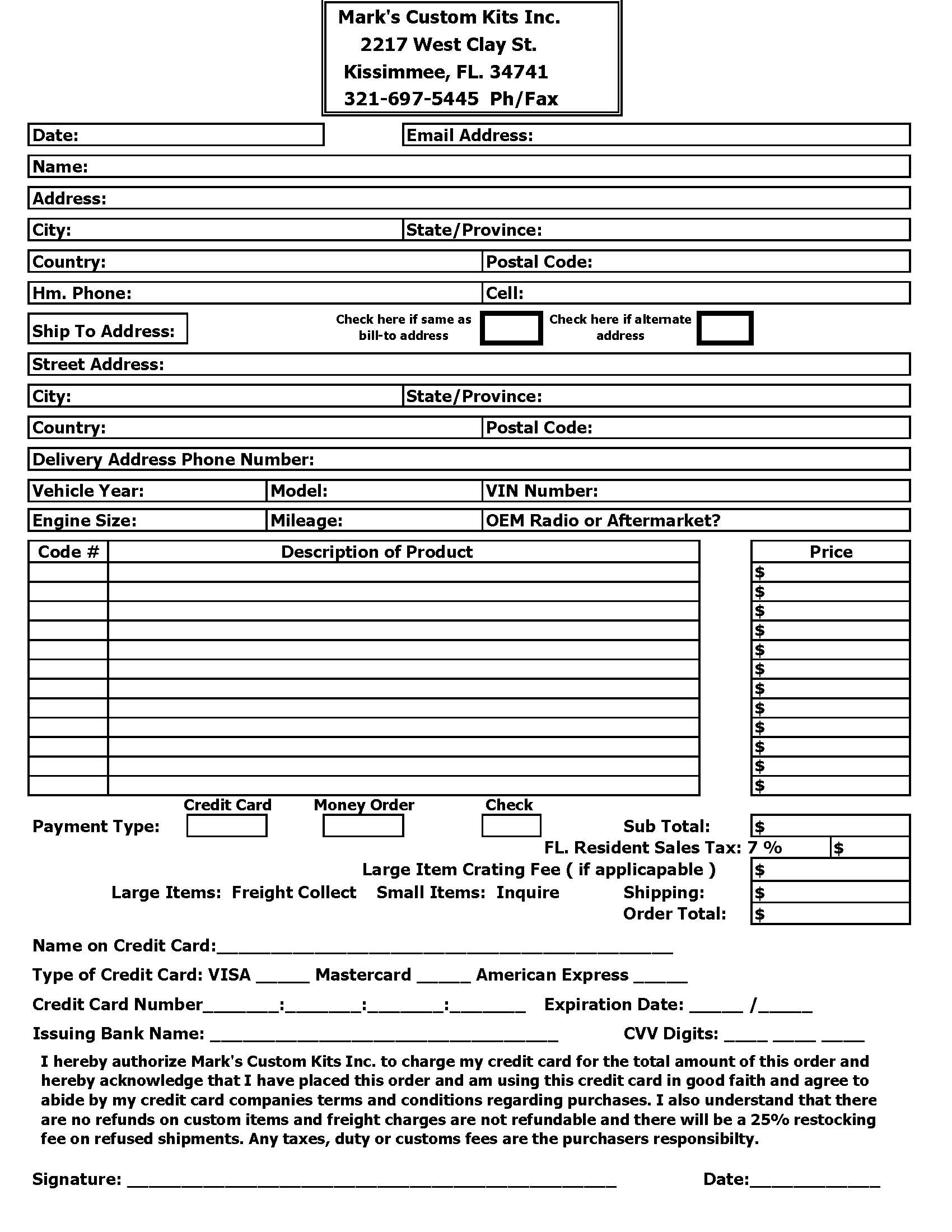

Order Form
How to order:  Click on the above order form,  which will open a downloadable PDF file that can be filled in on your computer, and fill in everything EXCEPT the requested car information, that is NOT necessary. The shipping will depend on your address and the weight of your package. All packages will be sent via UPS, which is trackable, once I send you the tracking number.
